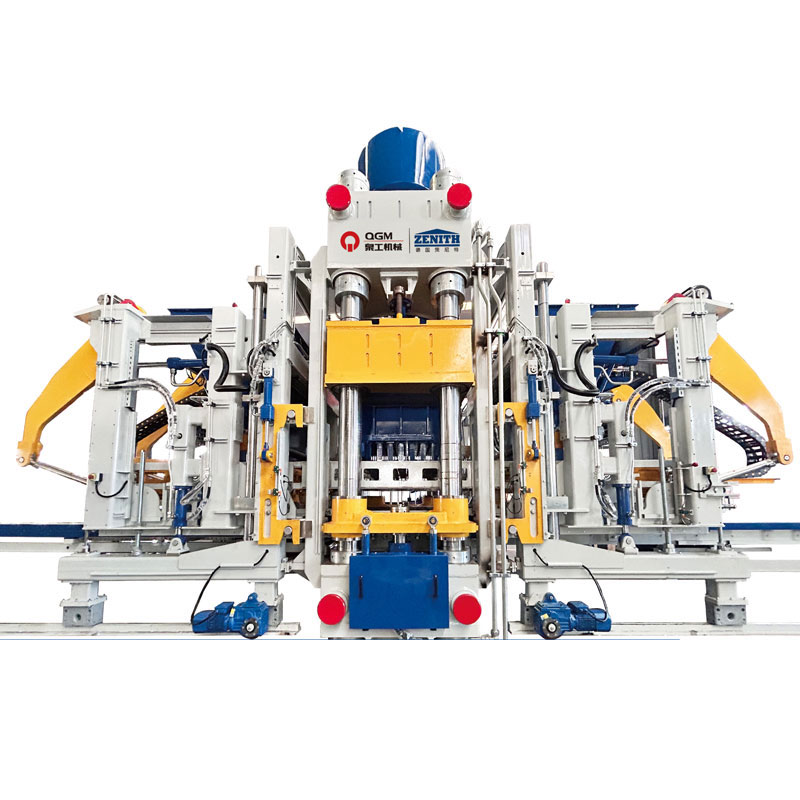

Zenith 940SC Pallet-Yemahara Block Machine

Semugadziri ane hunyanzvi, tinoda kukupa Zenith 940SC Pallet-Yemahara Block Machine. Iyo 940sc inochinja-chinja inopa yakakura kwazvo mhando yekugadzira mikana yeese kongiri block uye paving block michina pamusika wepasi rose. Inogona kushandiswa semuchina wepasirese pamwe nemuchina wakatsaurirwa kune zvisiri-yakajairwa zvigadzirwa uye inogona kushandiswa kupedzisa imwe-pallet chirimwa kugadzira niche zvigadzirwa. Muchina uyu wakavakirwa kune zvemhando yepamusoro zvinodiwa uye unogadzira wakaderera-mutengo zvikamu zvezvikamu zvakaita sepaving blocks ane akatarisana nemusanganiswa kana maburi mabhuroko nezvimwe.

Main Technology Features

1）Iyo yekuzvitsanangura, menyu-inotyairwa Kubata Panel inoita kuti kushanda kwemuchina kuve nyore. Iwo maparamendi ekugadzira emhando dzakasiyana mold uye mapurogiramu ekugadzira anopinzwa uye anochengetwa nekushandisa yakanyatso kurongeka menyu masks. Inokurumidza Siemens SPS inoshandiswa kune intenal signal processing.

2) High-eifficiency Hydraulic System. Simba reHydraulic rinoshandisa maviri-circuilt high pressure; Hydraulic system ine maviri Milti-Star- Piston Pumps. Inoshandisa proportional hydraulic tekinoroji kugadzirisa kumhanya uye kushanda zvinoenderana neyakasiyana zvigadzirwa zvinogadzirwa. hydraulic movements inogona kufambiswa panguva imwe chete uye yakazvimiririra nekumhanya kwakasiyana uye kumanikidza uye data rese rinogona kunge richimisikidzwa mukubata skrini. Ruzivo rwese senge nguva, kuverenga, sarudzo, hydraulic kumhanya uye kudzvanywa kunogona kumisikidzwa kuburikidza nekubata skrini.

3) High-eifficiency Vibration system. Tafura yevibration yakagadzirwa kuitira kuti ive nemhando ina dzakasiyana dzekugadzira; Chikamu chepamusoro chetafura yevibration chakakamurwa-kaviri kuitira kuti uwane kufambiswa kwesimba uye optimum compaction; Replaceable wear plate yekudzivirira yekumusoro kwetafura yevibration: Tafura yevibration yekugamuchirwa kwemavibrators maviri kuti iwane simba guru re centrifugal re80 kN; kugadzira 50cm yakakwirira zvidhinha, iyo mold furemu inoshongedzerwa nemavibrators. (Inogona kuve ne 2, 4, 6. 8 vibrators zvinoenderana ne block urefu), Vibration motors inoshandisa Servo motors.

4) Aggregate Feeding system. Feeder ine hydraulic inofambiswa; inogona kugadzirisa bhokisi rekudyisa rinomhanya pane inochinjika ant torque yakakwirira chaiyo njanji zvinoenderana neakasiyana mold, feeder gwara vhiri dhayamita Ø 80mm; Hydraulic driven swivel scraper (matatu-akapatsanurwa) yekucheneswa kwakaringana kwenzvimbo yekuumbwa; Iyo hydraulically inotyairwa yekugovera grate inotungamira kune yakaenzana kugovera kwekongiri muforoma; Hurefu hunogadziriswa bhurashi rekuchenesa, rakasungirirwa kumadziro ekumberi kwedhirowa rekudyisa rekuchenesa tamper musoro shangu...

Technical Data

Base zvinhu hopper	1,200L
Base material feedbox	2,000L
Pigment hopper	800L
Pigment feedbox	2,000L
Max.kudyisa kureba kweloader	2,800mm
Kugadzira saizi
Hurefu hwekuumba Max	1240mm
Max kuumba upamhi (inogadzira patafura yekuzunguza)	1.000mm
Max kuumba upamhi (kuburitsa pasi)	1,240mm
Product urefu
Multi-layer kugadzirwa
Min.product urefu(inogadzira pane pallet)	50mm
Max. chigadzirwa urefu	250mm
Max kurongedza urefu hwepallet yeimwe layer yechigadzirwa)	640mm
Kugadzirwa kwemazinga akaderera pane pallet
Max chigadzirwa urefu	600mm
Kugadzirwa kwakaderera pasi pasi
Max.chigadzirwa urefu	650mm
Kugadzirwa pasi
Max. chigadzirwa urefu	1.000mm
Min chigadzirwa urefu	250mm
Muchina uremu
Pasina mold uye pigment mudziyo	11.7T
Pigment mudziyo	1.7T
Saizi yemuchina
Hurefu hwakazara (pasina pigment mudziyo)	4,400mm
Hurefu hwakazara (ine pigment mudziyo)	6,380mm
Max. hurefu hwakazara	3,700mm
Min huremu hwese (ransport urefu)	3,240mm
Huwandu hwese (kusanganisira control panel)	2.540mm
Vibration system
Max. simba rinonakidza rengano yekuzunguza	80KN
Min. kubvisa simba rekudengenyeka kwepamusoro	40KN
Simba rekushandisa
Zvichienderana nehuwandu hwehuwandu hwetafura yekuzunguza	42KW

Kukwanisa Kugadzira

Block Type	Dimension (mm)	Pictures	aty/Cycle	Cycle Time	Kukwanisa Kugadzira (Per 8hs)
Hollow Block	400*200*200		12	40s	8,640 pcs
Rectangular Paver	200* 100*60		54	38s	817m2
Rectangular Paver (isina facemix)	200*100*60		54	36s	864m2
UNI Pavers	225*112.5*60-80		40	38s	757m2
Curstone	150*1000*300		4	46s	2,504 pcs
