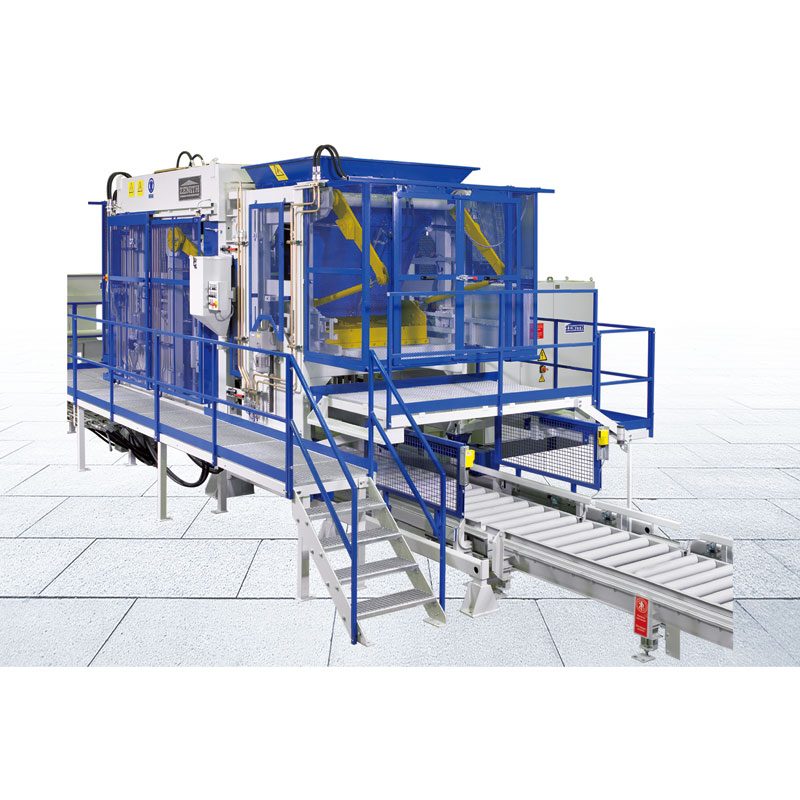

Zenith 844SC Paver Block Machine

Iyo Zenith 844SC Paver Block Machine yakagadzirwa uye yakagadzirwa muGermany. Iyo inonyanya kutarisisa pakugadzira matombo ekugadzira ane anoyevedza maficha akadai: Yakazara otomatiki uye Multi- layer kugadzirwa, pallet-isina (kuchengetedza yakakura mutengo pa pallet), inoonekwa menyu yekufamba, yekubata mashandiro epaneli, zvigadzirwa zvinotangira pa50mm-500mm pakureba.

Send Inquiry

Product Description

Semugadziri ane hunyanzvi, tinoda kukupa Zenith 844SC Paver Block Machine.Zenith 844SC Paver Block Machine muchina wepamusoro-soro wakagadzirirwa kugadzirwa zvakanaka kwemapaver block. Yakashongedzerwa tekinoroji yepamusoro uye maficha ekuona epamusoro-mhando yekubuda uye yakanyanya kubereka.

Main Technology Features

1) Intelligent inoshanda: Ichi chishandiso chinotora PLC yakangwara inopindirana sisitimu, iyo inodzorwa ne15 inch touch screen uye PLC, kuti ishande yakazara otomatiki, semi otomatiki kana nemaoko. Iyo ine hushamwari inotaridzika inoshanda interface inoshongedzerwa nekuisa data uye inobuda mudziyo.

2) Fence rolling conveyor bhandi: Iyi Zenith 844SC Paver Block Machine inoshandisa rolling conveyor bhandi, inoratidzira nekufamba kwakaringana, dhiraivha yakatsetseka, kuita kwakadzikama, ruzha rwakaderera, kutadza kuderera, hupenyu hurefu hwesevhisi, nezvimwe. Iyo yakawedzera fenzi uye inoenderera ichivandudza chengetedzo pfungwa. kupa kuchengetedzwa kukuru kwekuchengetedza kune vashandisi.

3) Kukurumidza kuumbwa kushanduka: Kuburikidza neiyi sisitimu, muchina unoseta nhevedzano yekuumbwa coefficient criterion. Iyi sisitimu ine mabasa ekukurumidza kukiya mechini, nekukurumidza tamper musoro kushandura mudziyo uye yemagetsi yakadzorwa kureba kwechishandiso chekudyisa, kuve nechokwadi chekuti mold dzakasiyana dzinogona kutsiviwa nekukurumidza.

4) Inogadziriswa tafura yekuzunguza: Kureba kwetafura yekuzunguza kunogona kugadziridzwa kuti isangane nezvinodiwa zvekugadzira zvigadzirwa zvakasiyana. Iyo yakajairwa midziyo inogona kugadzira zvigadzirwa nehurefu hwe50-500mm. Isu tinogona zvakare kugadzira zvigadzirwa zvine hurefu hwakakosha tichishandisa yakakosha mold ichitevera zvinodiwa nevatengi.

5) Kudyisa chaiko: Iyo yekudyisa inoumbwa ne silo, inotungamira bhodhi tafura, yekudyisa mota uye lever shaft. Kureba kweiyo anti-twist inotungamira bhodhi tafura inogona kugadziriswa uye inotsvedza njanji inogona kumira uye kufamba

chaizvo. Iyo lever shaft uye ambilateral yekudyisa mota yerod drive inofambiswa nehydraulic pressure, uye tsvimbo yekubatanidza inogadziriswa, kuve nechokwadi chekuti mota yekudyisa yekufamba yakatwasuka.

Technical Data
1）Vimba zvakatemwa uye kureba kwechigadzirwa

Maximum	500mm
Minimum	50mm
Max. kureba kwezvidhinha stack	640mm
Max.production area	1,240*10,000mm
Pallet size (yakajairwa)	1,2701,050125mm
Hopper volume ye base material	Inenge 2100L

2) Machine parameters

Muchina uremu
Ne pigment device	Kunenge 14T
Iine conveyor, inoshanda platfom, hydraulic station, pallet warehouse, nezvimwe	Kunenge ku9T
Saizi yemuchina
Hurefu hwakazara	6200mm
Max.total urefu	3000mm
Max. hupamhi hwese	2470mm
Muchina tekinoroji paramita / kushandiswa kwesimba
Vibrating system	2 zvikamu
Vibration table	Max.80KN
Top vibration	Max. 35KN
Hydraulic system: composite loop
Total flow	83L J min
Operating pressure	18 MPa
Simba rekushandisa
Max simba	50KW
Kudzora system	SIEMENS S7-300(CPU315)

Zenith 844 Machine Layout

Kukwanisa Kugadzira

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Cycle Time	Kukwanisa Kugadzira (Per 8hs)
Rectangular Paver	200* 100*60		54	28s	1,092m2
Rectangular Paver (isina facemix)	20010060		54	25s	1,248m2
UNI Pavers	225112560-80		40	28s	1.040m2
Curstone	1501000300		4	46s	2,496 pcs
